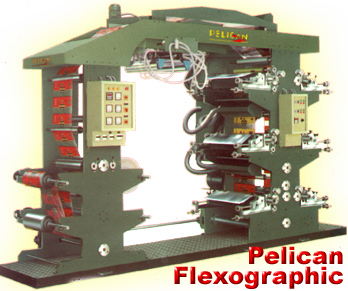

FEATURES : PELICAN FLEXOGRAPHIC MACHINE
The machine consisting of
- High efficient Pneumatic /hydraullic Web guiding system is provided, this type of
control loop ensures that, wrong web align is corrected quickly.
- Heavy duty plate, stress relived, carefully and methodically machined to maintain
accuracy over long dependable life, Distinguishly designed strong and steady plate
structure mounted on base frame, with improved path direction which helps to provide sharp
printing, smooth rotation of all type of plastic film.
- The printing zone mounted on the structure with adequate space between successive unit
for operational convenience.
- The machine are fitted with Helical Gears, which will ensure longitudinal and horizontal
registration at all speed level with smooth run.
- All aluminium path rollers are mechanically balanced.
- Minimum wastage level and minimum dependancy on labour due to increased automation.
- "Maxwell automatic" make Thyristor drive controlled panel is provided.
- High efficient Recycled air drying system consisting of drying chamber fitted with
nozzles of high velocity centrifugal fan is provided.
- Duplex system having double unwinding / rewinding station enable to print two rolls
simultaneously.
- Finest screen on anilox rollers which helps to minimum consumption of ink, and improve
printing quality with sharpness.
OPTIONAL ATTACHMENT
Automatic Unwinding Unit :
E + L (Erhard + Leimer) make Automatic Web tension control system, The unit
consisting of :
One no tension measuring roller fitted with two Nos. of load cell of upto 20 Kg. range
One no microprocessor base control panel
One no magnetic powder brake interface card
Display indication of reference and actual tension value
Data entry board for control of operating parameters
Manual tension adjusting potentiometer
E + L (Erhard + Leimer) make AIR SHAFT
Shaft body and shaft end journals from steel
- Expansion segmats from wear resistance rubber
- Max. air pressure 6-Bar
- One no. air gun
E + L (Erhard + Leimer) make SAFETY CHUCKS
- One no. k - 30 type safety chuck (air shaft holder)
- One no. kw - 30 type safety chuck with extended shaft.
