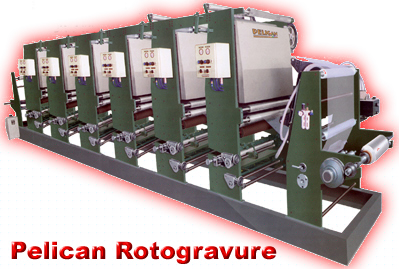

FEATURES : PELICAN ROTOGRAVURE MACHINE

• Automatic unwinding Web tension control system, consist of microprocessor controlled with two load cells on tension measuring roller and an electromagnetic powder brake. These type of control loop ensures that, wrong web tension are corrected quickly.
• Air shaft on unwinder which helps to reduce wobbing tendency of the web, less time in loading and unloading of rolls and also provide uniform grip of the core.
• Safety chuck is a square bar holder for air shaft. It maintain high concentricity between safety chuck and air shaft. The safety chuck is key elments of modern unwinding system.
• High efficient web guiding system is provided on unwinding station (std.made).
• Heavy duty frames, stress releived carefully and methodically machined  to maintain accuracy over long dependable life.
• The machine consists of heavy duly plate. The printing stations mounted on the structure with adequate space between successive unit for operational convenience.
• The machine are fitted with worm Gear Boxes which will ensure longitudinal and horizontal registration at all speed levelling with smooth run.
• All aluminium path rollers are mechanically balanced.
• Minimum wastage level and minimum dependancy on labour due to increased automation.
• High efficient pneumatic control system on impresion rubber roller.
• Maxwell automatic make Thyristor drive controlled central panel is provided.
• High efficient drying system consisting of- drying chambers, fitted with nozzles of high velocity centrifugal fan is provided.

Unwinding unit comprising :

E + L (Erhard + Leimer) make Automatic web tension control system. The unit consisting of

• One no. of tension measuring roller fitted with two Nos. of load cell from 0 to 20 Kg. range
• One no. of microprocessor base control panel.
• One no. of magnetic powder brake interface card.
• Display indication of reference and actual value.
• Data entry board for control of operating parameters
• Manual tension adjusting potentiometer.

E+L (Erhard + Leimer) make Pneumatic / hydraulic Web guiding system consisting of

• Hydralic servo cylinder dia 50 x 100 mm strock with Two nos. of spherical bushing.
• Servo centre operator edge sensor.
• Vernier adjusting device with square steel bar to mount and adjust the edge sensor for different width.
• Pneumohydraulic power unit operating with A.C. motor & separately fitted electrical controller consisting of contactor over load relay & terminals with instalation.

E + L ( Erhard+Leimer ) make AIR SHAFT consisting of

• Shaft body and shaft end journals from steel.
• Expansion segmats from wear resistance rubber.
• Max. air pressure 6-Bar.
• One no. of air gun.

E+L (Erhard+Leimer) make SAFETY CHUCKS

• One no. k - 30 type safety chuck (air shaft holder).
• One no. kw - 30 type safety chuck with extended shaft.

Gravure printing units each comprising :

• Distinguishly designed Heavy, strong and steady plate structure with attractive look out and improved path direction which helps to provide wrinkless smooth rotation of all type or flexible material. Oli-immersed transmission gear boxes mounted on back side of the printing units.
• Cylinder mounting shaft complete with hard steel matal taper cones and quick locking checknuts. The shaft transmits drive fiom the output gear, mechanical device for axial movement of the printing cylinder (+/-20mm).
• Inking device consisting of ink tray designed for use with minimum quantity of ink & self locking mechanism for raising / lowering the ink tray to accomodate printing cylinders of different repeats.
• full width holder to accomodate doctor blade for the even removal of excess ink from the printing cylinder, supported on solid precision ground guides. Doctor blade drives its oscillatory drive from the drive transmission gear box. Facility to vary working position / contact angle necessary for different printing repeats.
• Fullwidth rubber coated impression roller, mounted on its shaft & quick locking bearing housing at either end. Pneumatic controls for raising lowering the impression roller, complete with pressure gauge and regulator for fine indication and control of contact pressure on the printing cylinder.

  Rewinding unit comprising :

  • One no. D.C. motor along with thyristor drive or one no. tourqe motor along with dimmer jet.
  • One no. rewind bracket with supporting bearing and quick locking arrangement to accomodate rewind shaft.
  • One no. rewind shaft complete with Reel-cones and specially designed quick locking check-nuts (Extra on request).
